Premium Aluminium Slim Line Sliding Door – CP68

Key Information

CP68 - Slimline elegance, comfort and security

The sliding system CP 68 offers you all design freedom to create contemporary living spaces, combining ultimate brightness with maximum comfort and security

Excellent performance

1 mm

Max Sash Width

1 mm

Max Sash Height

20 W/m2K

U Value as low as

1 Pa

Water Tightness

1 Pa

Wind Load

Imagine looking out onto your garden through a wall of glass… these sliding doors can go a long way to making this a reality. Our sliding doors are designed to offer industry-leading maximum sizes, and with these huge panes of glass come uninterrupted, panoramic views and lots of natural daylight.

The CP 68 slimline sliding door offers complete design freedom to create contemporary living spaces. With optimal brightness combined with maximum comfort and aesthetics, it is the perfect solution for refurbishment projects. It is a highly-insulated sliding system that combines elegance with performance and security.

This unique sliding system is characterised by its slim profiles, allowing the integration of large windows and doors for maximum views, in combination with burglary resistance class RC2. The integrated innovative technologies guarantee ultimate performances with regard to wind and water tightness and thermal insulation, meeting with the highest standards. The sliding system CP 68 offers all design freedom to create contemporary living spaces, combining ultimate brightness with maximum comfort and security.

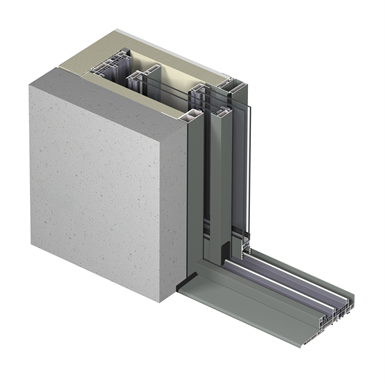

This sliding system offers a wide range of opening possibilities, from elements which slide in a hidden wall cavity, over 2- and 3-rail solutions, allowing you to open up to 6 leaves.

FEATURES and PERFORMANCE

Not only are the doors designed to perform to the highest standards, the component parts are also made from only the best materials. The stainless steel rollers, for example, have been tested to thousands of cycles, so you can be confident that the door will open and close smoothly for years to come

Double and triple glazed options
Ultra slim frame
Strong and durable

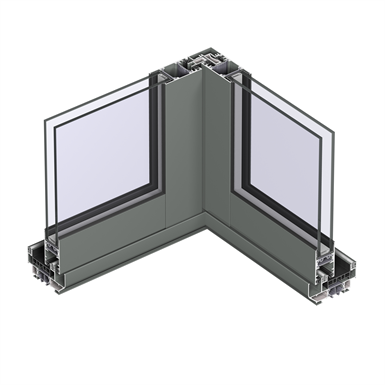

Corner Solution possible

technical details

• 34mm – Visible width meeting section

• 1500mm – Max. height vent

• 1500mm – Max. width vent

• 1200kg – Max. weight vent (element)

• 148mm – Overall system depth frame

• 68mm – Overall system depth vent double track

• 124mm – Overall system depth vent double track

• 160kg – Max sash weight

• 18mm – Rebate height

• 24mm – Min. Glass thickness

• 36mm – Max. Glass thickness

• Thermal break

• Fibreglass Reinforced Polyamide Strips

Glass Options

We have a variety of glass options, including a range of obscuring glass offering different levels of privacy. As well as integrated blinds that are built into the window-pane in-between the double-glazing. We also offer high-performance glass that can be customised to suit specialised purposes such as switchable which can alternate between transparent -to- opaque, oversized glass units for the big projects & back-painted glass panels.
